NSR TH Serisi

Ölçü Tabloları

Ölçüler mm cinsindendir. Model kodu: NSR-[Morse no][seri]. Doğru model ve stok durumu için TKT Industrial'a danışın.

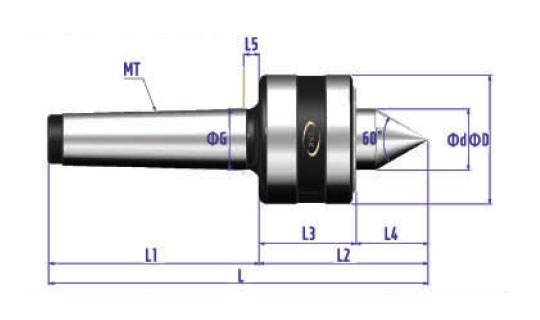

NSR-.

Model numarası	Modeli	Mors Konik	ΦD	Φd	L	L1	L2	L3	L4	L5	MAX Ağırlık(kg)	MAKS R.PM	MAX Bitiş(㎜)
1006003	3.	MT3	49	25	154	85	69	43	26	6	500	4,000	0.003
1006004	4.	MT4	66	31.4	194.5	108	86.5	49.5	37	8	1,000	3,000	0.003
1006005	5.	MT5	81	40	242	136	106	61	45	8	2,000	2,500	0.003
1006005G	5THG	MT5	93	40	250	136	114	71	43	8	2,500	2,000	0.003
1006006	6.	MT6	126	60	334.2	189	145.2	85.2	60	10	4,500	1,000	0.003

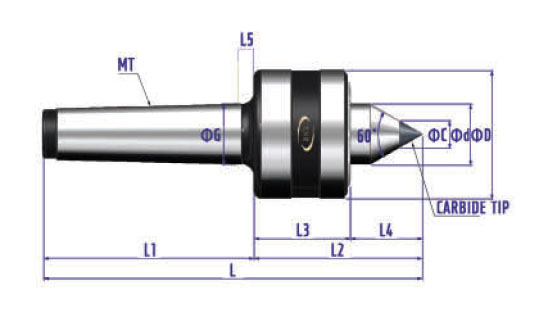

NSR-THC

Tungsten karbür uç · HRA 90~91

Model numarası	Modeli	Mors Konik	ΦD	Φd	L	L1	L2	L3	L4	L5	ΦC	MAX Ağırlık(kg)	MAKS R.PM	MAX Bitiş(㎜)
1006013	3THC	MT3	49	25	154	85	69	43	26	6	10	500	4,000	0.003
1006014	4THC	MT4	66	31.4	194.5	108	86.5	49.5	37	8	14	1,000	3,000	0.003
1006015	5 THC	MT5	81	40	242	136	106	61	45	8	18	2,000	2,500	0.003
1006015G	5THCG	MT5	93	40	250	136	114	71	43	8	18	2,500	2,000	0.003
1006016	6 THC	MT6	126	60	334.2	189	145.2	85.2	60	10	30	4,500	1,000	0.003
